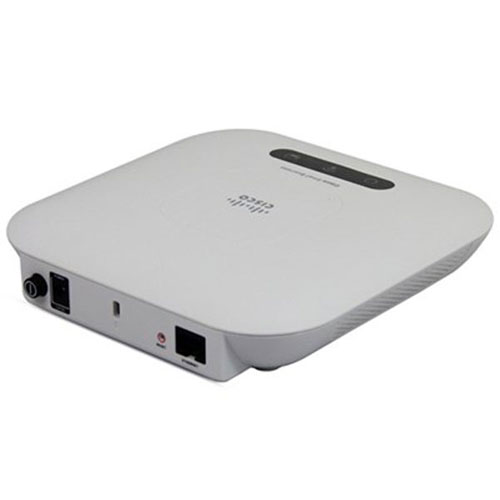

Cisco WAP321 Wireless-N Selectable-Band AP - WAP321-E-K9
Secure and Easy to Deploy Wireless-N Networking with Gigabit Ethernet Connectivity.
Tính năng kỹ thuật :
Wireless Access Point hoạt động theo chuẩn N 2.4GHz hoặc chuẩn A 5GHz , cho tốc độ wifi lên đến 300Mbps (tùy điều kiện), cổng kết nối LAN GB hỗ trợ PoE.
Hỗ trợ 08 SSID, 08 VLAN. Hỗ trợ Up to 32 connected users, or 20 active users. Có thể nâng số lượng user hoạt động lên tối đa 80 user bằng kỹ thuật clustering 8 AccessPoint.
Kỹ thuật MIMO gia tăng vùng phủ sóng và loại bỏ điểm chết.
Hỗ trợ tính năng WDS, Repeater, Bridge.
Sẵn sàng hỗ trợ thoại IP và video streaming chất lượng cao. Hỗ trợ xác thực tài khoản của khách bằng trang Login (Captive Portal).
Specifications |
Description |
||
Standards |
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
||
Ports |
Ethernet, Power |
||
Switch |
Power button (on/off) |
||
Buttons |
Reset |
||
Cabling type |
Category 5e or better |
||
LEDs |
Power, Wireless, LAN |
||
Operating system |
Linux |
||
Physical Interfaces |
|||
Ports |
Gigabit Ethernet, 12V DC power with support for 802.3af PoE |
||
Power supply |
Not included with access point, but supports external power 12V DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE |
||
Buttons |
Power (on/off) push button; Reset button |
||
Lock slot |
Slot for Kensington lock |
||
LED |
Power, Wireless, Ethernet |
||
Physical Specifications |
|||
Physical dimensions (W x D x H) |
6.66 x 6.67 x 1.38 in. (169.08 x 169.42 x 35 mm) |
||
Weight |
0.606 lb or 275g |
||
PoE |
|||
PoE |
802.3af |
||
Peak PoE power |
10.6W |
||
Network Capabilities |
|||
Network protocols |
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP) |
||
VLAN support |
Yes |
||
Number of VLANs |
1 management VLAN plus 8 VLANs for SSID |
||
Multiple SSIDs |
8 |
||
802.1X supplicant |
Yes |
||
802.11d |
No |
||
SSID to VLAN mapping |
Yes |
||
Auto channel selection |
Yes |
||
Spanning tree |
Yes |
||
Load balancing |
Yes |
||
IPv6 |
Yes ● IPv6 host support ● IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
||
Layer 2 |
802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN |
||
Security |
|||
WEP/WPA/WPA2 |
Yes, including Enterprise authentication |
||
Access control |
Yes, management access control list (ACL) plus MAC ACL |
||
Secure management |
HTTPS |
||
Wi-Fi Protected Setup (WPS) |
Yes (soft WPS, no hardware push button) |
||
SSID broadcast |
Yes |
||
Rogue access point detection |
Yes |
||
Mounting and Physical Security |
|||
Multiple mounting options |
Desktop installation; mounting bracket included for easy ceiling or wall mounting |
||
Physical security lock |
Kensington lock slot |
||
Quality of Service |
|||
Quality of service (QoS) |
Wi-Fi Multimedia Traffic Specification (WMM TSPEC) |
||
Performance |
|||
Wireless throughput |
Data rate =300 Mbps; actual client throughput will vary. |
||
Recommended user support |
Up to 32 connective users, 20 active users |
||
Configuration |
|||
Web user interface |
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS) |
||
Multi-Access Point Management |
|||
Single Point Setup |
Yes |
||
Maximum access points per cluster |
8 |
||
Active clients per cluster |
80 |
||
Management |
|||
Management protocols |
Web browser, SNMP v3, Bonjour |
||
Remote management |
Yes |
||
Event logging |
Local, remote syslog, email alerts |
||
Network diagnostics |
Logging and packet capture |
||
Web firmware upgrade |
Firmware upgradable through web browser, imported/exported configuration file |
||
Dynamic Host Configuration Protocol (DHCP) |
DHCP client |
||
IPv6 host |
Yes |
||
HTTP redirect |
Yes, and captive portal |
||
Wireless |
|||
Frequency |
Selectable-band 2.4 GHz or 5 GHz (not concurrent) |
||
Radio and modulation type |
Single radio, orthogonal frequency division multiplexing (OFDM) |
||
WLAN |
802.11n |
||
Operating channels |
1 to 13 (depending on country) |
||
Wireless isolation |
Wireless isolation between clients |
||
External antennas |
None |
||
Internal antennas |
Internal fixed PIFA antenna |
||
Antenna gain in dBi |
2 dBi each antenna |
||
Transmitted output power |
● 802.11b @ 11 Mbps: 17 dBm ● 802.11g @ 54 Mbps: 13 dBm ● 802.11n @ HT20HT40, MCS15: 13 dBm |
||
Receiver sensitivity |
● 802.11b: 11 Mbps @ –86 dBm ● 802.11g: 54 Mbps @ –71 dBm ● 802.11n: 300 Mbps @ –64 dBm |
||
Wireless Distribution System (WDS) |
Yes |
||
Roaming |
Yes |
||
Fast roaming |
802.11i preauthentication |
||
Active WLAN clients |
Same as number of users: 32 max connected users, 20 active users recommended |
||
Multiple SSIDs |
8 |
||
Wireless VLAN map |
Yes |
||
WLAN security |
Yes |
||
Wi-Fi Multimedia (WMM) |
Yes, with automatic power save, and Voice profile |
||
Operating Modes |
|||
Access Point mode, WDS bridging, Workgroup Bridge mode |
|||
Environmental |
|||
Power |
12V 1A DC input, and IEEE 802.3af compliant PoE |
||
Certifications |
FCC class B, CE, IC, Wi-Fi |
||
Operating temperature |
0° to 40°C (32° to 104°F) |
||
Storage temperature |
–20° to 70°C (–4° to 158°F) |
||
Operating humidity |
10% to 85% noncondensing |
||
Storage humidity |
5% to 90% noncondensing |
||
Mean time between failures (MTBF) |
492281 hours |
