(Không bao gồm thuế VAT)
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core i3 series,
Intel® Celeron® and Intel® Pentium®
2. Intel® C232 chipset
3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
5. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
6. I/O: 1 VGA, 1 COM, TPM header
7. 2 SuperDOM with built-in power
8. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
THÔNG SỐ
|
Product SKUs |
|

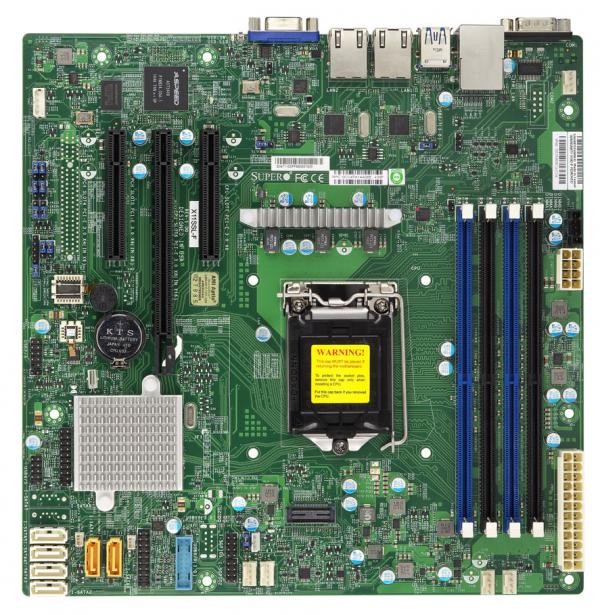

| MBD-X11SSL | X11SSL |
| Physical Stats | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor/Cache | |
| CPU | Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5. |
| Single Socket H4 (LGA 1151) supported, CPU TDP support 80W | |
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core i3 Processors and Intel® Xeon® Processor E3-1200 v6 series |
| System Memory | |
| Memory Capacity | 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices | |
| Chipset | Intel® C232 |
| SATA | Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210-AT |
| Graphics | Aspeed AST1400 |
| Input / Output | |
| USB | 6 USB 2.0 ports (2 rear + 4 headers) |
| 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) | |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 rear) |
| TPM | TPM Header |
|
Expansion Slots |
|
| PCI-E | 1 PCI-E 3.0 x8 (in x16 slot), |
| 1 PCI-E 3.0 x8, | |
| 1 PCI-E 3.0 x4 (in x8 slot) | |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 | |
| DMI 2.3 | |
| Hardware BIOS Virus protection | |
| PCI 2.3 | |
| Plug and Play (PnP) | |
| SMBIOS 2.7.1 | |
| UEFI 2.3.1 | |
| USB Keyboard support | |
| Management | |
| Software | NMI, SSM, SuperDoctor® 5, Watchdog |
| Power Configurations | ACPI Power Management |
| Power-on mode for AC power recovery | |
| PC Health Monitoring | |
| Voltage | +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT |
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors |
| Temperature | CPU thermal trip support, PECI, Monitoring for CPU and chassis environment, Thermal Monitor 2 (TM2) support |
| LED | UID/Remote UID, CPU / System Overheat LED |
| Other Features | Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, WOL |
| Operating Environment | |
| Operating Temperature Range | 0°C ~ 50°C (32°F ~ 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
