Model

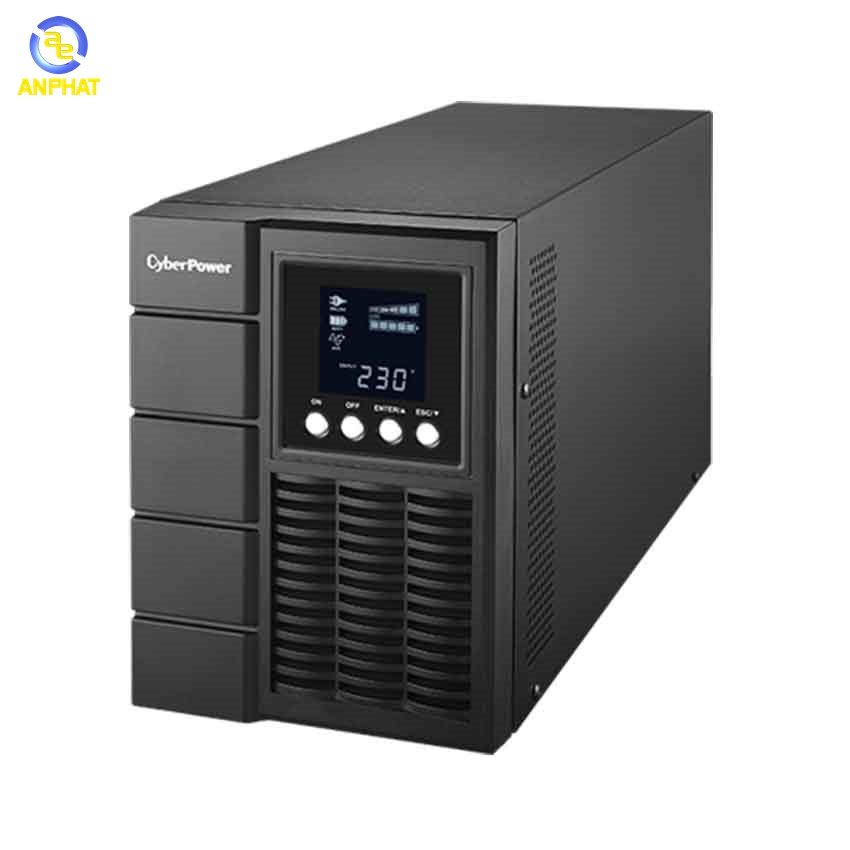

OLS1000E

Capacity (VA/W)

1000VA / 900W

Typology

Online (Double Conversion)

Energy-Saving Technology

Yes, ECO Mode Efficiency > 95%

Input

Voltage Range

120~139VAC for 0~25% Load

140~159VACfor 0~50% Load

160~179VAC for 0~75% Load

180~280VAC for 0~100% Load

Input Type

IEC C14

Frequency Range

40~70Hz

Output

UPS Outlets (Numbers)

(4) IEC C13

On Battery Output Voltage

Pure Sine Wave at 208, 220, 230, 240 VAC (Configurable)

On Battery Output Voltage Distortion (@Nominal Battery Voltage)

≤ 3% (Linear Load), ≤ 5% (Non-Linear Load)

On Battery Output Frequency

50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5%

Transfer Time (Typical)

0ms

Overload Protection

AC Mode: Warning only @ 110%>Load>105%, Transfer to bypass after 60sec @ 120%>Load>110%, Transfer to bypass immediately@ Load>120% Battery Mode: Warning only @ 110%>Load>105%

Shutdown after 10sec @ 120%>Load>110%, Shutdown immediately @ Load>120%

Bypass Mode: Warning only @ 130%>Load>105%, Shutdown immediately @ Load>130%

Surge Protection and Filtering

Surge Protection

Yes

DSL/Phone/Fax/Modem protection

RJ11/RJ45(One In/One Out)

Short Circuit Protection

UPS Output Cut off Immediately or Circuit Breaker Protection

Battery

Sealed Maintenance Free Lead Acid Battery

(3) 12V / 7AH

Configurable External Battery Pack (Max.)

3

Typical Recharge Time

5

Runtimes

Half load-Full load (mins)

16/6

Status Indication

Indicators

Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode,C/F Mode, Fault, Replace Battery

Audible Alarms

Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery

Communication

Power Management Software

PowerPanel® Business Edition

Management

Self-Test

Yes

Auto-Charge/Auto-Restart

Yes

Auto-Overload Recovery

Yes

Cold Start (DC Start)

Yes

Connectivity Ports

(1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO

SNMP/HTTP Capable

Optional

Dimensions (H x W x D)

225 x 151 x 394 mm

Weight

13.1 kg
